Wind mill with external substation
Back
Insert in bottom slab
Cement-coated wall sleeve with sleeve

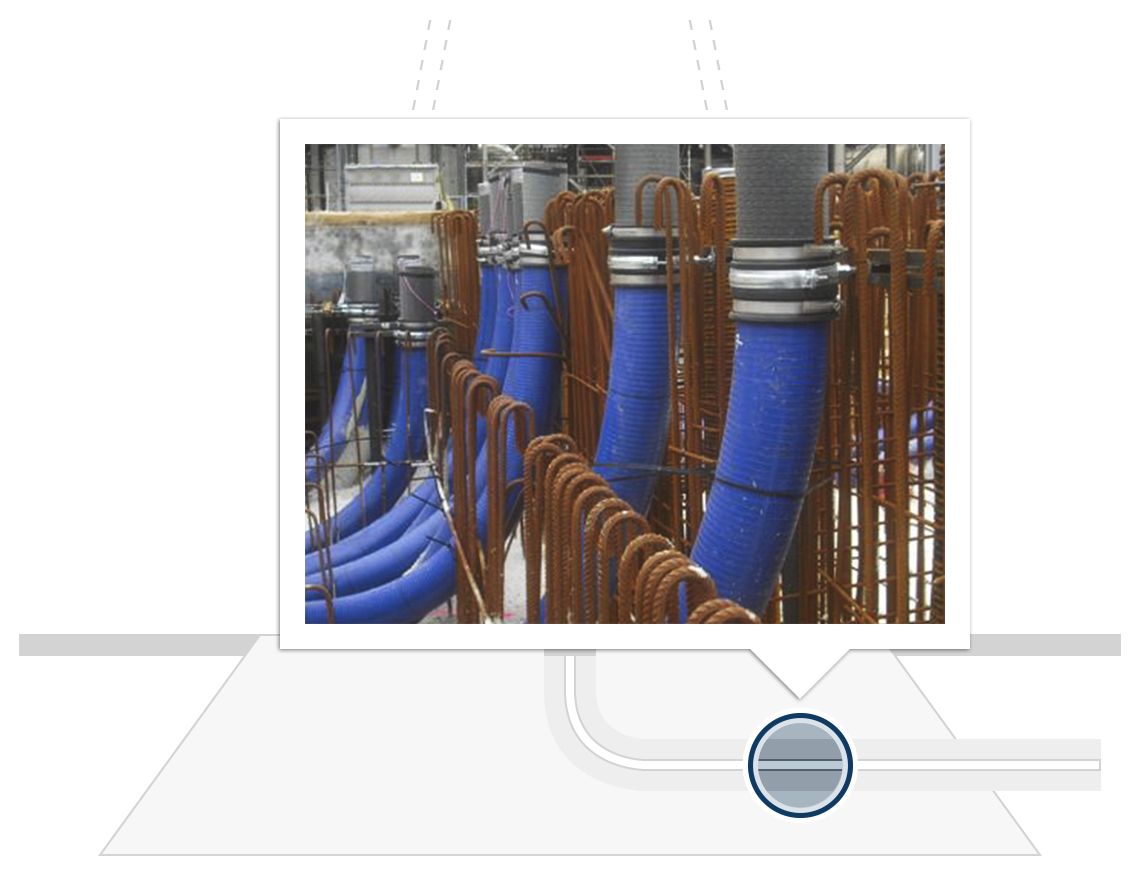

floor entry for Hateflex spiral duct
KES MA150 ZVR150/500
Article no.
For use in waterproof concrete. The Hateflex 14150 spiral duct can be connected using a sleeve. The seal with the cables is created with a press seal that is not included in the scope of delivery.
Polymer spiral duct
for cable duct system
Hateflex14150/xB
Flexible and very rugged duct A pressure-tight cable duct system can be created with the matching connection components.
Sealing for insert in bottom slab
Standard press seal
with super segmented ring technology and polymer press plates
HRK SSG b40 PAGF/A4/EPDM
: 150
Press seal for sealing cables in core drills or sleeves. Split design for sealing new installed cables or cables that have already been installed.
